Geotechnical drainage failures carry incredibly high stakes for any project site. Clogged systems quickly trap groundwater below the surface, allowing hydrostatic pressure to build rapidly against foundations and retaining walls. Compromised structural integrity almost inevitably follows. You cannot treat this material selection process as a simple commodity purchase; it represents a critical engineering decision. You must carefully balance soil retention against long-term hydraulic conductivity. If you fail, the entire drainage system collapses. This article provides a clear, actionable evaluation framework to help you assess critical material specifications accurately. You will learn how to ensure regional building code and DOT compliance, and we will guide you in selecting the exact material needed for specific civil and site drainage applications. Making informed engineering choices is essential to protecting both your structures and your budgets.
Selecting the right drainage filter cloth requires balancing Apparent Opening Size (AOS) with permittivity, based on the specific site soil profile (e.g., cohesive clay vs. sandy soil).
Water permeable nonwoven fabrics are generally optimal for subsurface drainage, while woven variants are better suited for soil separation, stabilization, and reinforcement.
Verifiable specification sheets and strict adherence to regional transportation (DOT) or building code standards are mandatory for commercial and heavy civil engineering projects.
Improper installation methods, such as insufficient seam overlap or poor backfill practices, can void the efficacy of even the highest-grade geotechnical filter membrane.
Every civil project faces a strict filtration versus clogging dilemma. Water must pass freely through the fabric, while fine soil particles must be kept out of the aggregate base. If the fabric pores are too large, soil enters the trench, contaminating the clean gravel. Conversely, if the fabric pores are too small, fine silts block the openings, causing the fabric to blind over time. Neither outcome allows water to drain properly, leading to systemic issues.
Choosing the wrong material accelerates severe failure modes. Silted trench drains can stop functioning after a single heavy rainy season. Retaining walls may experience catastrophic blowouts, as hydrostatic pressure easily overpowers heavy concrete blocks. Furthermore, foundation basements face severe flooding risks during peak storm events. Ultimately, these failures threaten the overall safety and viability of the entire site.
You must weigh upfront material costs against catastrophic remediation expenses. A premium soil separation fabric costs slightly more initially. However, excavating failed foundation drains requires heavy machinery, demolition of hardscapes, and the purchase of new aggregate. Remediation costs often exceed the original installation budget tenfold. Doing it right the first time guarantees system longevity and safeguards your investment.
Engineers categorize geotextiles into two primary manufacturing styles. You must understand their distinct physical properties to make the right choice for your project.
Manufacturers create water permeable nonwoven materials using an advanced needle-punched construction method. Thousands of barbed needles entangle synthetic fibers together, creating a random, three-dimensional pore structure that closely mimics natural root systems. These fabrics deliver exceptionally high flow rates and offer outstanding long-term filtration capabilities.
Primary use cases include highly efficient French drains.
Contractors use them extensively for durable trench lining.
They serve as the gold standard for subsurface foundation drainage.
Manufacturers weave slit-film or monofilament plastic yarns together on large industrial looms to create a tight, structured material. Woven fabrics offer incredibly high tensile strength, resisting stretching even under massive loads. However, they provide much lower permeability compared to their non-woven counterparts and tend to clog easily when exposed to fine silts.
Primary use cases include load distribution and subgrade support.
Civil engineers specify them frequently for road base stabilization.
They excel at aggregate separation under heavy-duty driveways.
They are far less ideal for dedicated filtration or drainage applications.
Geotextile Decision Matrix: Woven vs. Non-Woven
Feature | Non-Woven Geotextiles | Woven Geotextiles |
|---|---|---|
Manufacturing Method | Needle-punched fibers | Woven slit-film/monofilament |
Water Permeability | High | Low |
Tensile Strength | Moderate | Very High |
Primary Application | Drainage and Filtration | Stabilization and Reinforcement |
Clogging Risk | Low (allows fine water flow) | High (blinds easily in silt) |
A simple rule of thumb exists for buyers: prioritize non-woven rolls for drainage and filtration applications, and prioritize woven rolls for stabilization and structural reinforcement.
You cannot rely on basic visual inspections to select materials. Technical data sheets (TDS) dictate actual performance. You must evaluate four critical specifications before making a final purchase.
Apparent Opening Size defines the largest soil particle capable of passing through the fabric. Testing labs measure this using standard US Sieve sizes, where a higher sieve number indicates a smaller physical opening. You must match the AOS strictly to your specific site soil type.
Coarse, sandy soils drain quickly and require a specific AOS threshold to keep sand grains out of the aggregate. Conversely, cohesive clay soils feature microscopic particles. If you use a fabric featuring very small pores in clay, the particles will quickly blind the fabric. Clay actually requires highly permeable fabrics. You must allow some initial silt to pass through, which establishes a natural, highly effective soil filter just outside the fabric boundary.
Many buyers confuse water flow rate and permittivity. Flow rate measures pure volume, showing how many gallons per minute pass through one square foot of fabric. Permittivity, however, measures hydraulic efficiency, accounting for the hydraulic head pressure pushing the water through the material.
You must ensure your chosen geotechnical filter membrane can handle peak storm event runoff. If the permittivity falls too low, the fabric bottlenecks the entire system, causing water to back up rapidly. This hydrostatic buildup eventually forces water to the surface or against your foundation walls. Always verify that the fabric exceeds the anticipated maximum flow rate of your site.
The installation process often destroys weak materials. You must assess the fabric’s ability to withstand extreme installation stress, especially when contractors drop angular gravel directly onto the material or heavy machinery drives over adjacent soils.
The AASHTO M288 standard categorizes fabric survivability into three classes. You must carefully match these classes to your project specifications:
Class 1: Offers the highest survivability. Use this for severe installation conditions, sharp angular rocks, and areas requiring heavy compaction machinery.
Class 2: Serves as the reliable middle ground. Use this for standard commercial site work and moderate drop heights.
Class 3: Provides basic survivability. Use this only for lightweight residential projects utilizing rounded river rock and manual labor.
Construction delays happen frequently, and rolls might sit outside exposed to direct sunlight for weeks. UV rays rapidly degrade synthetic polymers, causing the fabric to lose tensile strength and become brittle. You must check the UV resistance rating. High-quality materials retain at least seventy percent of their strength after five hundred hours of continuous exposure.
Every application demands a tailored approach. You cannot use a universal solution for varied civil engineering challenges.
Subsurface trenches require high permittivity and demand strict soil separation. You must keep the internal aggregate completely clean, as muddy gravel cannot transport water effectively.
The best practice involves fully encapsulating the gravel envelope, a technique industry professionals call the "burrito wrap" method. You line the empty trench completely, place your perforated pipe and gravel inside, and fold the top edges over each other. This creates a sealed, highly permeable tube. A high-quality drainage filter cloth ensures this system operates flawlessly for decades.
Deep foundations face immense hydrostatic pressure, and accumulated water weight easily cracks structural concrete over time. You must mitigate this pressure behind block walls immediately to preserve structural integrity.

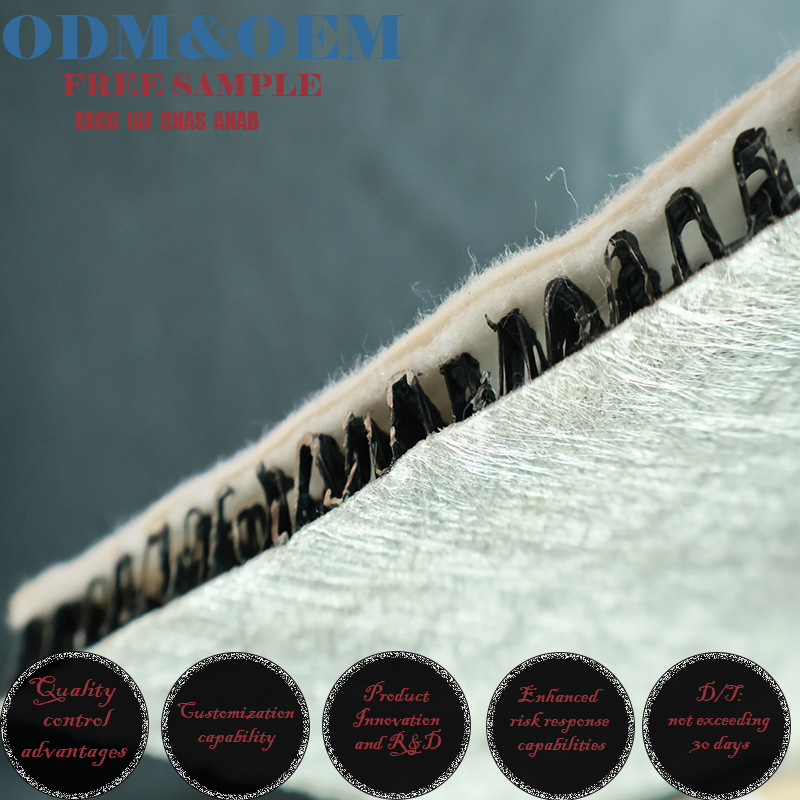

Commercial building codes require integrated drainage systems. You often pair a drainage board filter fabric alongside rigid dimple boards. The dimple board creates a permanent air gap against the wall, while the factory-bonded fabric keeps surrounding soil out of the dimple core. Water easily passes through the fabric, drops down the air gap, and enters the perforated foundation pipe below. This integrated approach guarantees completely dry basements.
Highway and municipal infrastructure projects require strict regulatory compliance. You cannot use untested materials; instead, you must navigate state-specific Department of Transportation (DOT) approved product lists.
Inspectors will reject unverified deliveries. Always source materials backed by certified, independent lab testing data. Programs like NTPEP (National Transportation Product Evaluation Program) audit these manufacturers regularly. Supplying NTPEP-compliant rolls ensures immediate engineer approval on demanding job sites.
Even the best engineering specifications will fail during a sloppy installation. You must control rollout mechanics on the job site carefully to ensure optimal performance.
Seams present a massive risk for soil intrusion. Because water flows along the path of least resistance, mud will enter the trench immediately if gaps exist.
You must overlap seams correctly. The necessary overlap depends entirely on your subgrade California Bearing Ratio (CBR), which measures the strength of the underlying soil. Soft, marshy soils have a low CBR and shift constantly, requiring seam overlaps of at least 18 to 36 inches. Firm, stable soils have a high CBR, allowing you to safely reduce overlaps to 12 to 18 inches. Never skimp on overlap measurements.
Punctures destroy hydraulic integrity. Contractors often damage fabrics during the placement of angular drainage rock, as a single sharp stone falling from an excavator bucket can tear the material.
You must enforce strict drop heights. Never allow operators to drop aggregate from higher than three feet. If you specify Class 3 survivability fabric, you should lower this limit to one foot. Furthermore, use rounded stone whenever possible to minimize puncture risks even further.
We have already discussed UV degradation risks, and proper site storage protocols prevent this damage before installation even begins. Keep all rolls securely wrapped in their factory opaque plastic until the actual day of deployment. Store them elevated off the muddy ground, as prolonged moisture and sunlight degrade roll edges rapidly.
Procurement teams must vet vendors ruthlessly. Do not accept vague answers about material origins. Ask your vendor specific technical questions: inquire if they can provide a spec sheet guaranteeing AASHTO M288 compliance, ask about their testing frequency, and confirm the exact lead time for Class 2 non-woven rolls. Reliable suppliers will provide independent testing documents instantly upon request.
Successful geotechnical drainage relies on a strict evaluation framework. You must identify your exact soil type first, and then match the Apparent Opening Size and permittivity parameters accordingly. Always verify survivability specs against your anticipated installation methods. Finally, ensure your field crews follow proper installation mechanics regarding overlaps and backfill heights.
We highly recommend consulting a certified geotechnical engineer for complex sites. You should always procure technical data sheets directly from the manufacturer before finalizing any bulk orders, verifying every metric against your local building codes.
Do not leave your next infrastructure project to chance. Request a detailed quote today, view our comprehensive product specification PDFs online, or contact our technical sales team for precise, project-specific material matching. We will ensure you get the exact fabric required for long-term project success.
A: Heavy clay requires a high-permittivity, non-woven geotextile. Because clay particles are microscopic, using a fabric with tiny pores causes it to blind instantly. A highly permeable non-woven roll allows initial silt to pass, establishing a natural soil filter outside the trench while effectively preventing long-term clogging.
A: No. Standard woven weed barriers fail quickly in subsurface drainage because they feature incredibly low flow rates. They lack the necessary three-dimensional pore structure for continuous water transport, clogging rapidly underground and rendering your entire French drain useless within a single season.
A: High-quality synthetic geotextiles can last for decades underground. Assuming correct installation, proper overlaps, zero puncture damage, and the total absence of UV sunlight exposure, these durable materials typically outlast the structural lifespan of the surrounding drainage pipes.
A: Standard filter fabric comes in standalone, flexible rolls used primarily to line drainage trenches. In contrast, drainage board filter fabric consists of this same material permanently heat-bonded to a rigid geocomposite dimple core. This specialized composite structure actively mitigates hydrostatic pressure against foundation walls by creating a continuous, unimpeded air gap.
